Every piping system that carries hot fluid or gas moves — pipes lengthen as they heat up, shift under pressure, and vibrate with the equipment they're connected to. Expansion joints exist to absorb that movement before it turns into stress on welds, flanges, and the pumps or turbines at either end of the line. Because that movement pattern (axial, angular, lateral, or some combination) is different in every system, expansion joint manufacturers build a family of distinct designs rather than a single universal part.
Here's a breakdown of how these joints work, the main types manufacturers produce, and what actually separates a well-engineered joint from a generic one.
Why Expansion Joint Design Matters
An expansion joint that's mismatched to its system doesn't fail gracefully. Undersized bellows fatigue and crack under repeated cycling; a joint installed without accounting for pressure thrust can put enormous unplanned load on anchors and connected equipment like pumps, compressors, and turbines. That's why the type of joint selected — and the manufacturer's engineering process behind it — matters as much as the material itself.
Reputable manufacturers design each joint using in-house engineering, based on the latest edition of the EJMA (Expansion Joint Manufacturers Association) code, and manufacture across the full pressure-temperature-movement range for the client's actual service conditions — rather than offering a fixed, generic bellows.

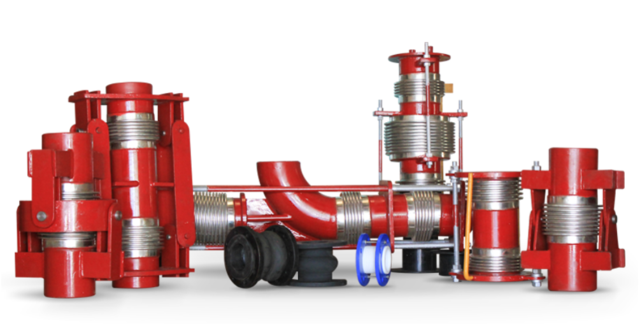

Main Types of Expansion Joints
Axial Expansion Joints
The simplest and most common configuration, a single axial expansion joint is used to absorb straight-line movement — axial extension or compression — along the pipe run, and can also accommodate limited lateral and angular movement. Design guidance generally recommends starting with a single axial joint for straight expanding pipe sections, then comparing it against other configurations if the movement or anchoring situation calls for something more complex.
Universal Expansion Joints
A universal expansion joint uses two flexible bellows elements connected by a center pipe, which lets it accommodate axial, angular, and lateral deflection together. This design is well suited to large lateral movements while keeping the spring force — the resistance the joint exerts back on the piping system — low. Control rods are sometimes added to distribute movement equally between the two bellows elements, though they don't restrain pressure thrust.
Gimbal Expansion Joints
Gimbal joints extend the hinge concept to allow angular rotation in any plane, not just one. Two hinge pins with perpendicular axes are connected through a central gimbal ring, giving the joint the ability to absorb pressure thrust, support the dead weight of the system, and reduce forces on the piping — all useful in complex piping layouts where proper anchoring and guiding isn't feasible. Gimbal joints are typically used in pairs, or combined with a hinged joint, to manage multi-planar thermal growth.
Hinged Expansion Joints (Single & Universal)
Hinged joints restrain the overall length of the joint using hinge hardware designed specifically to accommodate pressure thrust, while still allowing angular movement in one or two planes. In the double-hinged (universal) configuration, hinge forks are placed 180° apart and connected by pins, with the joints tied together by a center spool. This design is particularly effective at absorbing pressure thrust with minimal guiding and intermediate anchoring, while preventing torsion and limiting dead-weight forces on the piping system.
Pressure Balanced Expansion Joints (Inline & Elbow Type)
Pressure balanced joints are used specifically where main anchoring of the pipe isn't feasible, or where the pressure thrust would be too high for sensitive, load-averse equipment like pumps, rotating machinery, or turbines. Rather than transmitting that thrust into the anchors, the joint restrains and balances it internally using a separate balancing bellows. In the elbow-type configuration, the line bellows can be single or universal, while the balancing bellows itself isn't subjected to lateral deflection — keeping the thrust-balancing function isolated from the movement-absorbing function.
Metallic Hoses, CVT Bellows, and Fabricated Joints
Beyond the standard bellows configurations, manufacturers typically also produce flexible metallic hoses for tighter movement and routing needs, CVT (cross-vent/transition-type) bellows for specific ducting applications, and fully fabricated joints engineered to a customer's exact geometry when a catalog configuration won't fit the layout.
What Sets a Strong Manufacturer Apart
- Engineering depth — Design based on internationally recognized standards (like EJMA) and in-house design software, rather than scaled-up templates.
- Manufacturing range — Capacity to build across the full family of joint types — axial, universal, gimbal, hinge, pressure balance, and custom fabricated — in sizes ranging from small nominal bores up to very large diameters, generally limited only by transport and shipping constraints rather than production capability.
- Certifications — Quality management certification (such as ISO 9001:2015) and relevant statutory certifications (such as IBR for boiler-related piping in India) signal that a manufacturer's process is independently verified, not just self-reported.
- Cross-industry experience — A manufacturer with a track record across power, steel, cement, oil & gas, chemical & fertilizer, and similar heavy industries has likely already engineered around the failure modes specific to high-temperature, high-cycle, and corrosive service.
- Large-diameter and custom fabrication capability — Very large circular and rectangular expansion joints, and oversized dampers, are a genuine test of a manufacturer's engineering and fabrication capacity, since tolerances and thrust forces scale sharply with size.
Choosing the Right Joint for a System
Selecting the right expansion bellows type generally comes down to a short sequence: identify the type and direction of movement in the pipe section, check whether anchoring is feasible or whether pressure thrust needs to be internally balanced, calculate actual thermal expansion for the section based on installation and operating temperatures, and then match the joint type to those constraints — starting with the simplest configuration (a single axial joint) and moving to universal, gimbal, hinged, or pressure-balanced designs only where the movement or anchoring situation requires it.
Frequently Asked Questions
What is the difference between an axial and a universal expansion joint? An axial expansion joint uses a single bellows to absorb straight-line movement along the pipe. A universal expansion joint uses two bellows elements connected by a center pipe, allowing it to absorb axial, angular, and lateral movement together — useful for larger lateral offsets with a low spring force.
What is pressure thrust, and why does it matter in expansion joint selection? Pressure thrust is the force that internal pressure exerts on an expansion joint's end connections, which is transmitted into the piping anchors if not otherwise restrained. Hinged, gimbal, and pressure-balanced joints are specifically designed to manage or eliminate this force, which matters most where main anchoring isn't feasible or where connected equipment (like pumps or turbines) is sensitive to added load.
When is a gimbal expansion joint used instead of a hinged joint? A hinged joint only allows angular rotation in a single plane. A gimbal joint allows rotation in any plane, making it the better choice for complex, multi-planar piping layouts where movement isn't confined to one direction.
What standards do expansion joint manufacturers typically follow? Manufacturers commonly design to the EJMA (Expansion Joint Manufacturers Association) code, which sets out standards for expansion joint design, materials, and manufacturing. Many manufacturers also hold quality certifications such as ISO 9001:2015, and statutory certifications relevant to their region and industry.
What size range can expansion joints be manufactured in? Capable manufacturers can typically produce joints from small nominal bore sizes up to very large diameters — including circular joints several meters in diameter and large rectangular joints — with the practical upper limit usually set by shipping and transport constraints rather than manufacturing capability.
Which industries rely most heavily on expansion joints? Power generation, steel, cement, oil & gas, LNG, chemical & fertilizer, pharma, shipbuilding, and defense are among the industries where expansion joints see the most demanding, high-cycle service.
Can expansion joints be custom fabricated for non-standard piping layouts? Yes. When a standard axial, universal, gimbal, hinged, or pressure-balanced configuration doesn't fit a system's geometry, manufacturers can engineer fully custom fabricated joints to the exact size, pressure, and movement requirements of the application.
